Bambu PLA-CF

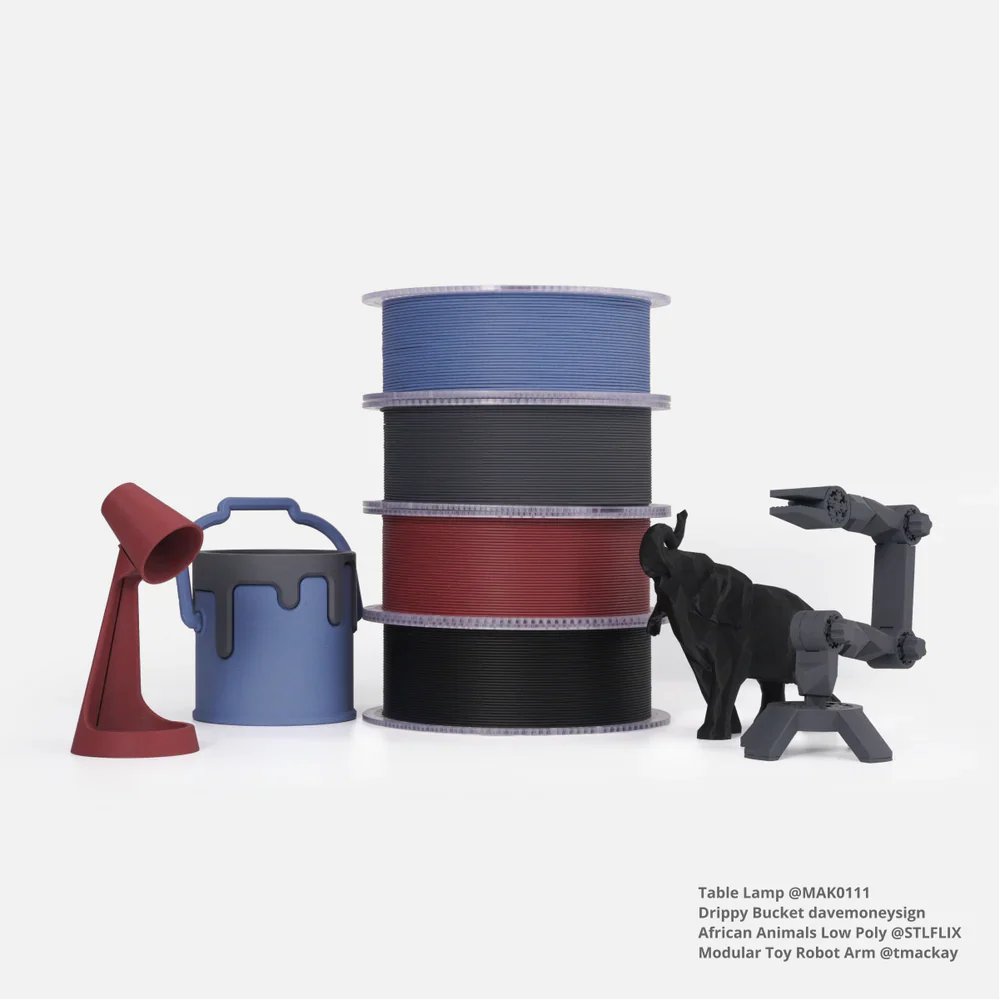

Bambu PLA-CF is carbon fiber reinforced PLA with improved stiffness and strength. PLA-CF is easy to print and beginner-friendly like regular PLA. It is AMS compatible with low clogging risk at high-speed printing. The prints are in matte finish with almost invisible layer lines, which make it suitable for printing general engineering parts or models requiring a better appearance, like bike frames, brackets and toys.



Carbon fiber texture & Minimized layer lines

The addition of carbon fiber gives prints a unique matte finish and effectively hides layer lines, providing a smooth, premium look.



Improved mechanical properties

Bambu PLA-CF exceeds the mechanical properties of PLA Matte in XY Bending Strength, Z Bending Strength, XY Bending Modulus, Z Bending Modulus, XY Impact Strength, and Z Impact Strength by between 20% and 115%, making it more suitable for printing models with higher strength requirements.



Stabilized printing dimension

Bambu PLA-CF features low shrinkage and warping resistance to achieve perfect matching accuracy between printed parts.



Minimal effort in support removal

Bambu PLA-CF is designed to support itself. It can be removed more easily compared to regular PLA, and still maintains a smooth support surface.



Not prone to clogging in high-speed printing

Bambu PLA-CF is just as easy to print as regular PLA. It can be printed smoothly and consistently at high speed without clogging.

Product Features

• Carbon Fiber Texture & Minimized Layer Lines
• Improved Mechanical Properties
• Stablized Printing Dimension

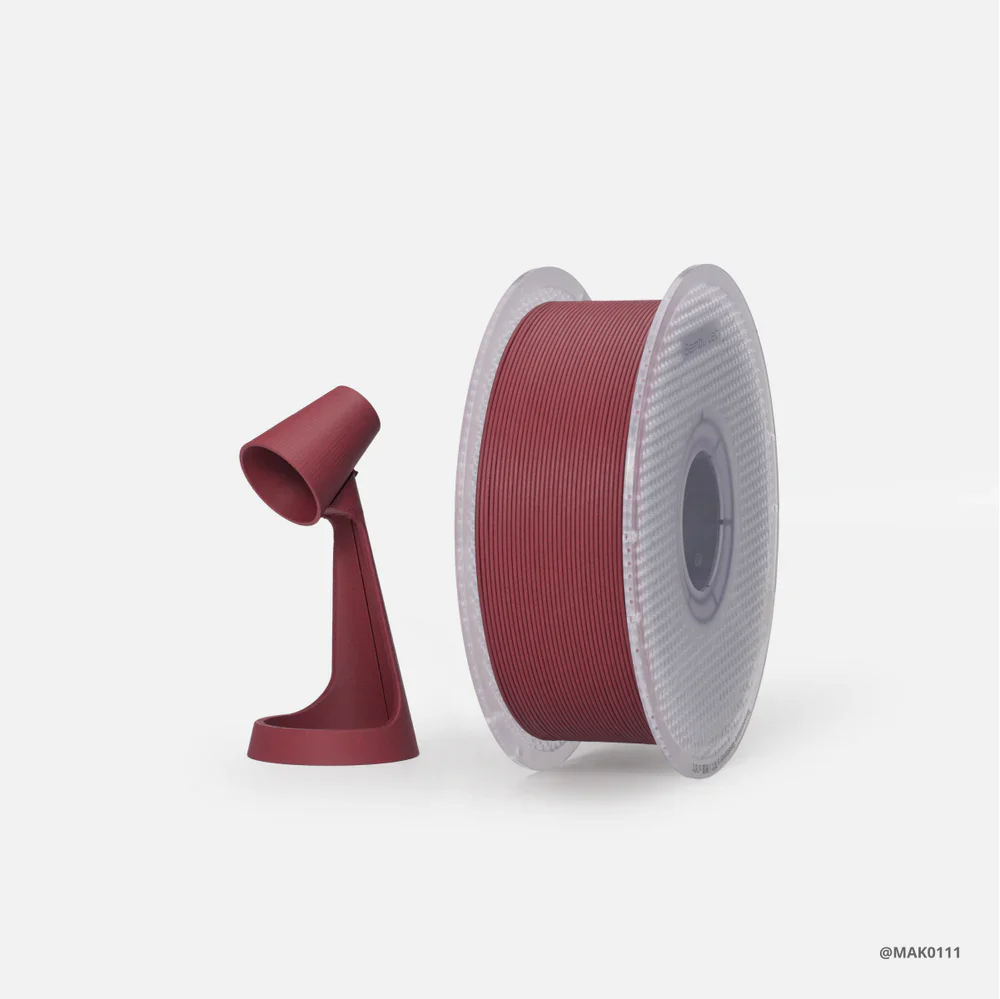

• Comes with Basic Reusable Spool
• Diameter: 1.75mm +/- 0.03mm

Cautions for Use

• 0.2 mm Nozzle Not Compatible
• Stainless Steel Nozzle Not Recommended
• Dry before Use for the Highest Print Quality
• AMS Compatible

Recommended Printing Settings

Drying Settings (Blast Drying Oven)	55 °C, 8 h
Printing and Keeping Container's Humidity	< 20% RH (Sealed, with Desiccant)
Nozzle Temperature	210 - 240 °C
Bed Temperature (with Glue)	35 - 45 °C
Printing Speed	< 200 mm/s

Physical Properties

Density	1.22 g/cm³
Vicat Softening Temperature	69 °C
Heat Deflection Temperature	55 °C
Melting Temperature	165 °C
Melt Index	3.7 ± 0.6 g/10 min

Mechanical Properties

Tensile Strength	38 ± 4 MPa
Breaking Elongation Rate	8.4 ± 3.2 %
Bending Modulus	3950 ± 190 MPa
Bending Strength	89 ± 4 MPa
Impact Strength	23.2 ± 3.7 kJ/m²

Printing Tips

• Drying conditions: 55℃ for 8 hrs. Store in a dry environment after use. Dry before use if the material absorbs moisture. For more details please refer to: Filament drying instructions on WIKI.
